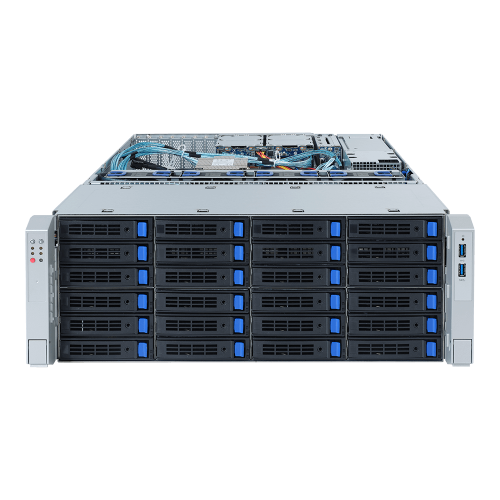

STX-WS QE36-14E2
$9,138.00
The STX-WS QE36-14E2 rackmount server is a 4U Microsoft Windows Server 2022-certified system designed to support Windows NAS. This server provides general-purpose performance with sizable onboard storage ideal for network attached storage.
The STX-WS QE36-14E2 is an AMD EPYC-based server, with thirty-six 3.5” hot-swappable drive bays, an additional two rear 2.5” drive bays, and support for PCIe Gen4.
Ideal NAS Use Cases
- Archiving
- Data archiving and backup
- Disaster recovery
- Email, file, and databases
- File storage and sharing
Description
| Barebone |
Gigabyte Server S452-Z30 – 4U – AMD EPYC 7003 – 36x SATA/SAS – 1200W Redundant
|
| Processor |
AMD EPYC™ 7313P Processor 16-core 3.00GHz 128MB Cache (155W)
|
| Memory |
8 x 8GB PC4-25600 3200MHz DDR4 ECC RDIMM
|
| 3.5″/2.5″ Boot Drive |
2 x 960GB Micron 5400 MAX Series 2.5″ SATA 6.0Gb/s Solid State Drive
|
| Storage Drive |
4 x 14TB SAS 3.0 12.0Gb/s 7200RPM – 3.5″ – Ultrastar™ DC HC550 (512e/4Kn)
|
| Controller Card |
Broadcom MegaRAID 9560-8i SAS3/SATA 8-Port RAID – 4GB – PCIe 4.0 x8
|
| Battery Backup |
CacheVault Flash Cache Protection Module for 9460/9480/9560/9580 Series (CVPM05) (with bracket)
|
| Cables |
2 x AC Power Cord (North America), C13, NEMA 5-15P, 3 ft.
|
| Operating System |
Microsoft Windows Server 2022 Standard (16-core)
|
| Warranty |
Ultracoreltd® 3 Year Advanced Parts Replacement Warranty (Zone 0)
|
Specifications
| AMD EPYC 7003 Series | |
| DDR4 ECC Registered | |
| 4U | |
| 2 x 1GbE LAN ports (1 x Intel® I350-AM2) | |
| 1200W 80 Plus Platinum (1+1) Redundant Power Supply | |

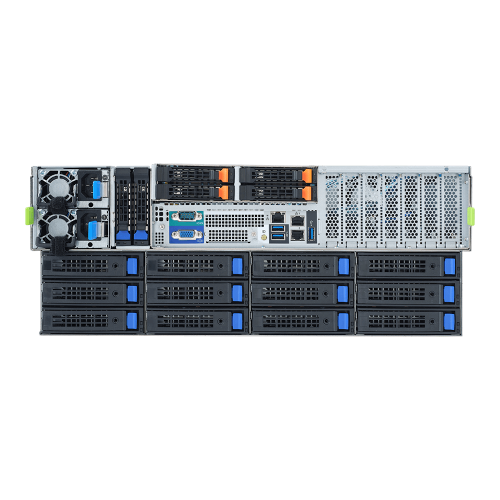

| 36x 3.5-inch hot-swap drives (24 front; 12 rear) 2x 2.5-inch SATA/SAS (rear) 4x 2.5-inch SATA/SAS/NVMe (rear) |
