STX-TN XE16-23S3
$14,018.00
Ultra Core ltd STX-TN XE16-23S3: 3U NAS Solution

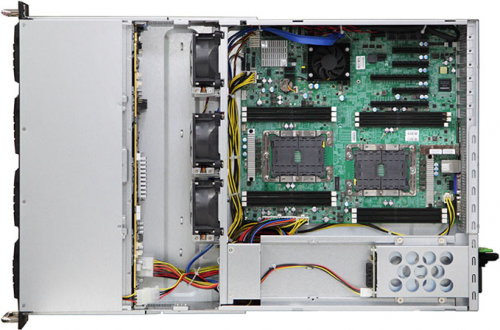

The Ultra Core ltd STX-TN XE16-23S3 is a 3U NAS solution featuring a dual-socket motherboard based on 3rd Gen Intel® Xeon® Scalable processors, housed in the Ultra Core ltd STX-3316 3U chassis. The STX-3316 is a 3U 16-bay SAS/SATA storage chassis.
The built-in software delivers high performance along with the reliable, self-healing OpenZFS filesystem.
Every Ultra Core ltd NAS solution comes standard with a 3-year warranty.
Ideal NAS Use Cases
- Archiving
- Disaster recovery
- Email, file, and database hosting
- File storage and sharing
- Messaging app hosting
- Web app development
Description
| Motherboard |
Intel® C621A Chipset – 12x SATA3 – 2x M.2 NVMe – Dual Intel® 1-Gigabit Ethernet (RJ45)
|
| Processor |
2 x Intel® Xeon® Silver 4314 Processor 16-Core 2.4GHz 24MB Cache (135W)
|
| Memory |
12 x 16GB PC4-25600 3200MHz DDR4 ECC RDIMM
|
| Chassis |
Ultracoreltd® STX-3316 3U Chassis – 16x Hot-Swap 3.5″ SATA/SAS3 – 12Gb/s SAS Single Expander – 800W 1+1 Redundant Power
|
| 3.5″/2.5″ Boot Drive |
2 x 960GB Micron 5400 MAX Series 2.5″ SATA 6.0Gb/s Solid State Drive
|
| VDEVs |
VDEV – 2 x 7-wide RAIDz2 + 2 Hot Spares, 71% Utilization (10x usable storage drives)
|
| Storage Drive |
16 x 12TB SAS 3.0 12.0Gb/s 7200RPM – 3.5″ – Seagate Exos X24 Series FastFormat™ (512e/4Kn)
|
| L2Arc |
2 x 960GB Micron 7450 PRO Series M.2 PCIe 4.0 x4 NVMe Solid State Drive (80mm)
|
| Slog |
2 x 128GB Intel® Optane™ Persistent Memory Module 200 Series (PMem)
|
| Controller Card |
Broadcom HBA 9500-8i SAS3/SATA 8-Port Tri-Mode Host Bus Adapter – PCIe 4.0 x8
|
| Operating System |
NAS OpenZFS Storage Operating System
|
| Warranty |
Ultracoreltd® 3 Year Advanced Parts Replacement Warranty (Zone 0)
|
Specifications
| 3U Rackmount | |
| 16 x 3.5” hot swap | |
| 800W 1+1 redundant PSU PMBus 1.2 80+ Platinum | |
| 3rd Generation Intel® Xeon® Scalable Processors | |
| DDR4 ECC Registered | |
| 2 x 1Gb/s LAN ports (Intel® I210-AT) 1 x 10/100/1000 management LAN |
